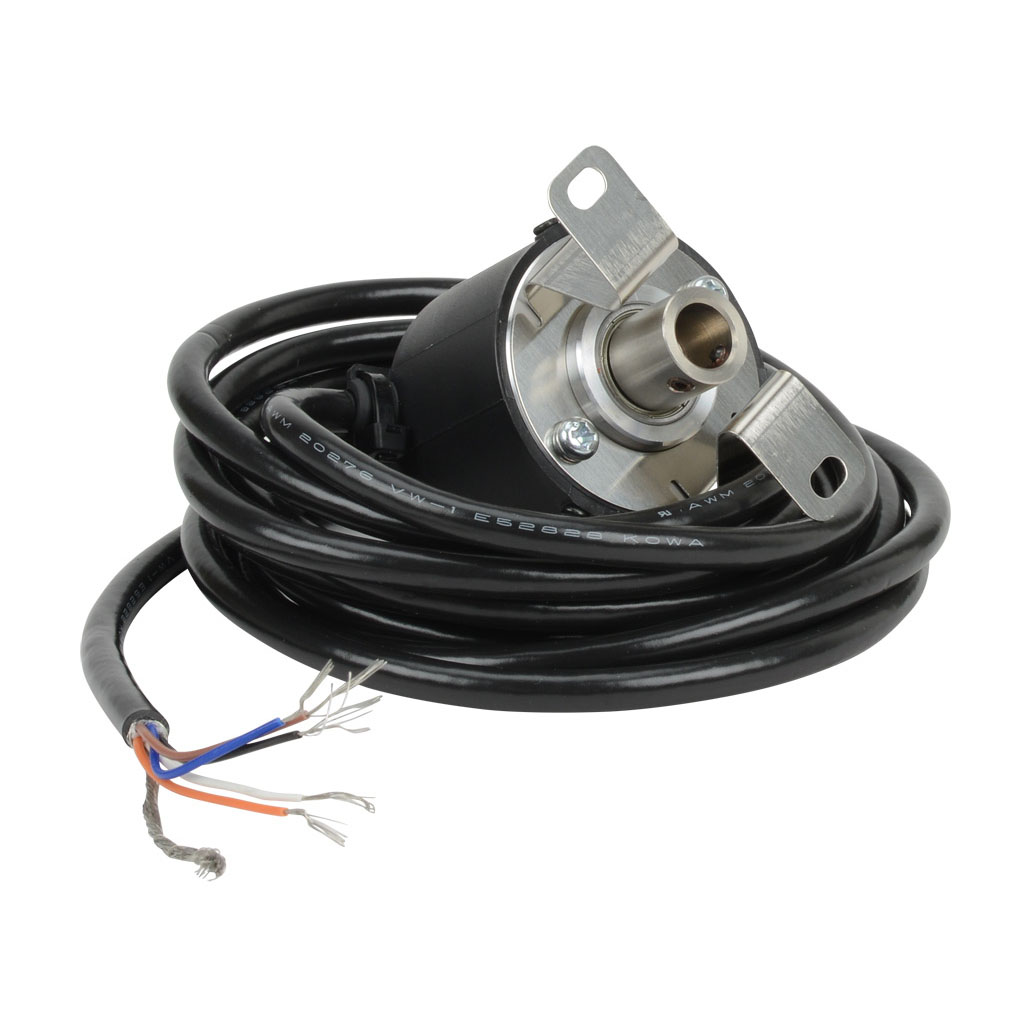

TRD-SH400BD

TRD-SH400BD


  • Koyo incremental (quadrature) encoder
  • Light duty
  • 12-24 VDC
  • NPN open collector output
  • 400 ppr
  • 8mm hollow shaft
  • 38mm diameter body
  • IP40
  • 6.5ft/2m cable length pigtail.

TRD-SH400BD Specifications

Technical Attributes
Brand Koyo
Item Encoder
Encoder Type Incremental (quadrature)
Duty Rating Light duty
Voltage Rating 12-24 VDC
Exit Orientation Radial
Encoder Output Type NPN open collector
Encoder Resolution 400 ppr
Shaft Type Hollow
Shaft Diameter 8mm
Radial Shaft Load 20N
Axial Shaft Load 10N
Frequency Response 200 kHz
Speed Rating 6000rpm
Flange Mount No
Encoder Body Diameter 38mm
Housing Material Aluminum
IP Rating IP40
Protection Type(s)
  • short circuit (between each output and common)
  • reverse polarity
Cable Length 6.5ft/2m
Cable Diameter Size 5mm
Wire Size 26 AWG
Connector Type Pigtail
