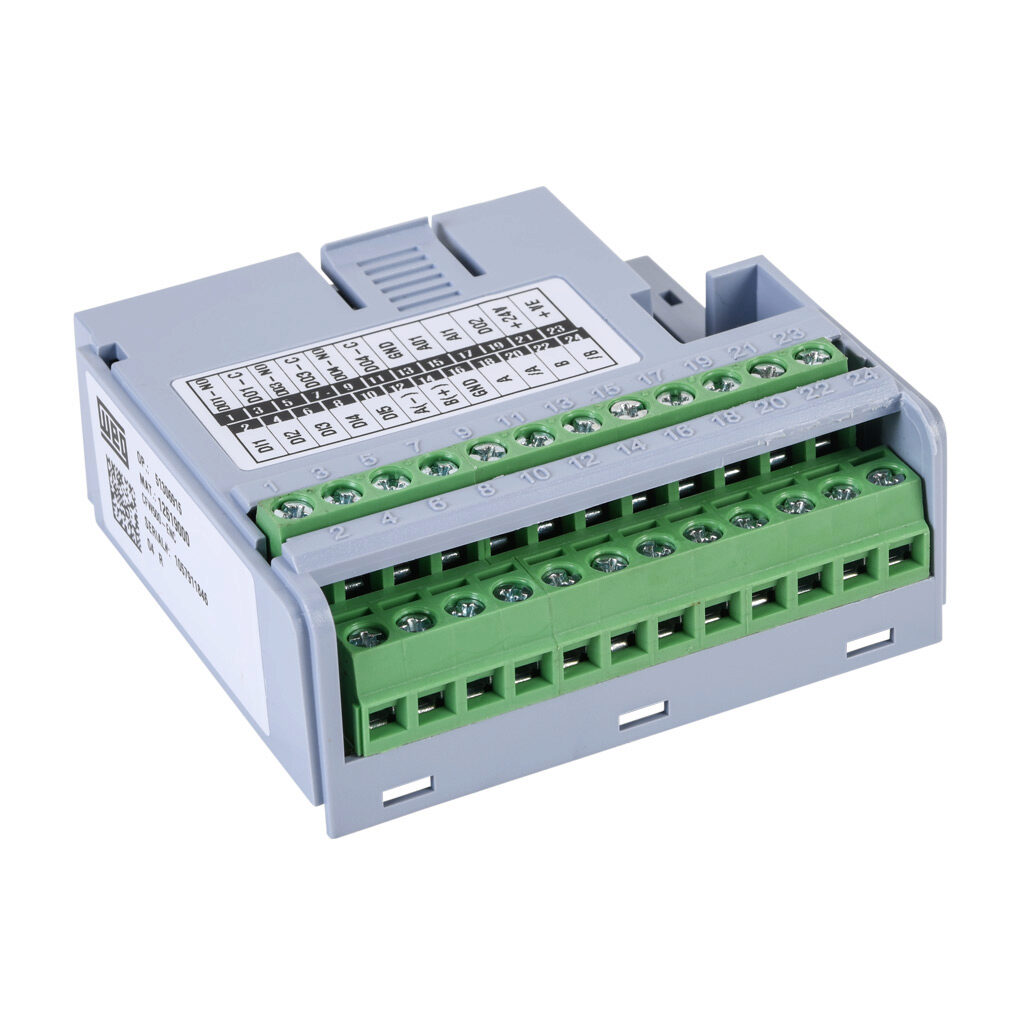

  • WEG Electric CFW500 series encoder analog combo module
  • 400 kHz maximum switching frequency
  • 1-channel quadrature encoder input
  • Analog Input: 1-channel
  • Analog Output: 1-channel
  • For use with WEG CFW500 series AC drives.

12619000 Specifications

Technical Attributes
Brand WEG Electric
Item Combo module
I/O Module Type Encoder analog
Series CFW500
Maximum Switching Frequency 400 kHz
Input High Speed Type 1-channel quadrature encoder
Number of Analog Input Channels 1
Analog Input Signal Type Current/voltage
Number of Non-Isolated Analog Input Commons 1
Input Resolution 10-bit
Input Current Signal Range 0-20 mA, 4-20 mA
Input Voltage Signal Range 0-10 VDC
Number of Analog Output Channels 1
Analog Output Signal Type Current/voltage
Number of Non-Isolated Analog Output Commons 1
Output Resolution 10-bit
Output Current Signal Range 0-20 mA and 4-20 mA
Output Voltage Signal Range 0-10 VDC
For Use With WEG CFW500 series AC drives
