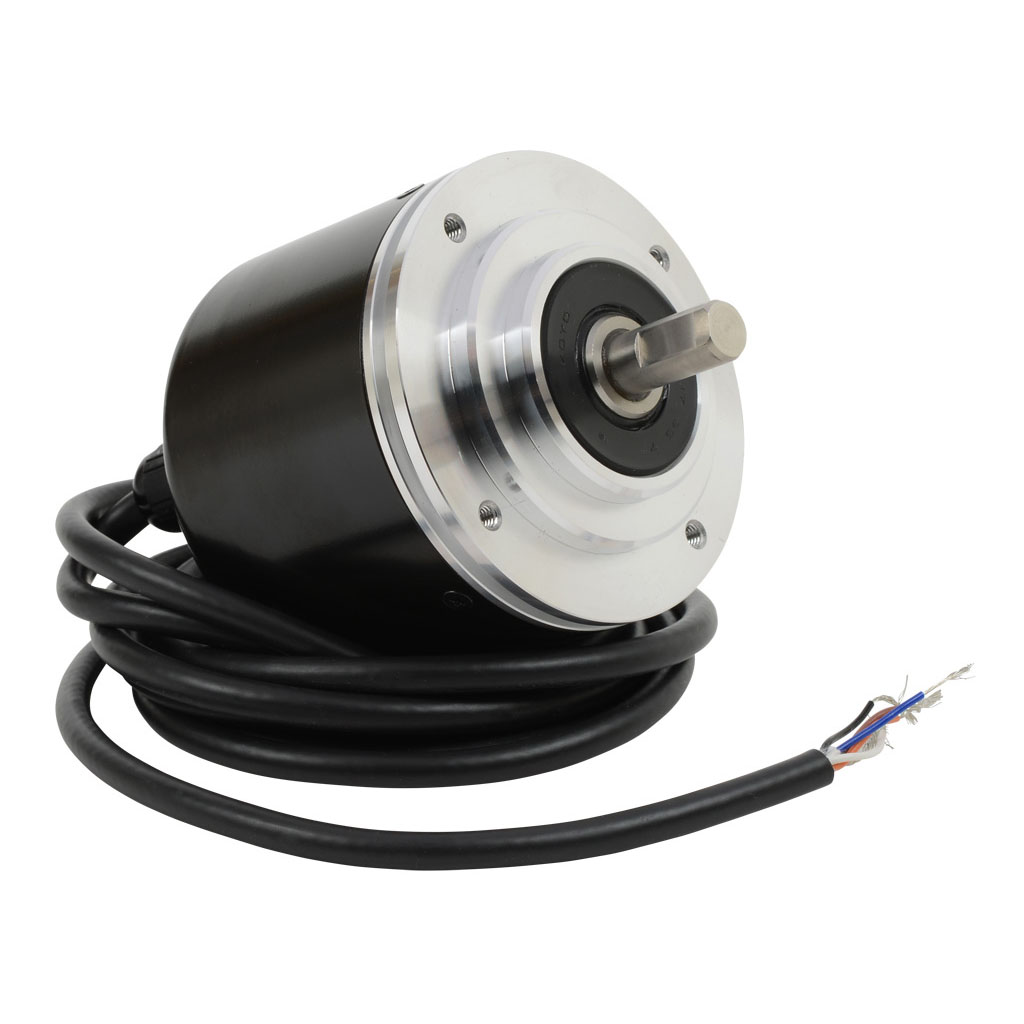

TRD-GK30-RZD

TRD-GK30-RZD


  • Koyo incremental (quadrature) encoder
  • Heavy duty
  • 10-30 VDC
  • Push-pull (totem) output
  • 30 ppr
  • 10mm solid shaft
  • 78mm diameter body
  • IP65
  • 6.5ft/2m cable length pigtail.

TRD-GK30-RZD Specifications

Technical Attributes
Brand Koyo
Item Encoder
Encoder Type Incremental (quadrature)
Duty Rating Heavy duty
Voltage Rating 10-30 VDC
Exit Orientation Axial
Encoder Output Type Push-pull (totem)
Encoder Resolution 30 ppr
Shaft Type Solid
Shaft Diameter 10mm
Radial Shaft Load 100N
Axial Shaft Load 50N
Frequency Response 100 kHz
Speed Rating 5000rpm
Flange Mount No
Encoder Body Diameter 78mm
Housing Material Aluminum
IP Rating IP65
Protection Type(s)
  • short circuit (between each output and common)
Cable Length 6.5ft/2m
Cable Diameter Size 6mm
Wire Size 24 AWG
Connector Type Pigtail
Includes Mounting hardware
